Need to Check Your Drains? We’ve Got You Covered!
Buying a House? - Home buyers drain survey.
Planning to buy a house?
We strongly recommend booking a professional drainage survey before committing. In fact, your building surveyor may already have advised it. Identifying hidden issues early could save you thousands of pounds in future repair costs.
Before you complete your purchase, make sure the drains are in good condition. Our Home Buyers Drain Survey gives you peace of mind by identifying any hidden issues that could lead to costly repairs later on.
Drain Mapping – Plan with Confidence!
Thinking about a future extension or renovation? We include a detailed drainage map with all our surveys, helping you understand your underground layout and avoid costly surprises during building work.
CCTV Survey for Build Over Agreements
Planning an extension? We provide WRC-approved Drainage Surveys to support your Build Over Agreement application.
Already completed the work? We also offer Post Build-Over Surveys to confirm everything meets the required standards.
Get in touch to make sure your project stays fully compliant.
CCTV Drain Survey
We use advanced CCTV technology to inspect your drainage system and identify any issues, from minor cracks to major blockages. You’ll receive a clear, detailed report with footage, helping you make informed decisions about any necessary repairs or maintenance.
CCTV Drainage Inspections.
If you're just after a quick check, our CCTV Drainage Inspection is a cost-effective way to assess your drains. This service doesn’t include a formal report — it’s what we call in the industry a simple “look and see.”
Ideal for peace of mind without the paperwork.
Foul Smell or Rodents? We Can Help
A persistent bad smell or signs of rats could point to a hidden drainage issue. Our CCTV Drainage Inspection can identify broken pipes, open joints, or entry points that pests may be using to access your property, helping you take targeted action fast.
Property Drain Check - cctv drain surveys

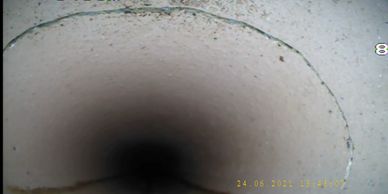

Cracks in Clay or Pot Drains
Cracks in Clay or Pot Drains
Cracks in Clay or Pot Drains
Cracks are common in older clay or vitrified pot drains and are often the starting point for more serious issues. What begins as a small crack can lead to further fractures, joint displacement, root ingress, or even partial collapse over time.
Cracks near or across a joint are more serious, as they can compromise the structural integrity of the system and may require remedial work such as patch lining, localised excavation, or full section replacement.

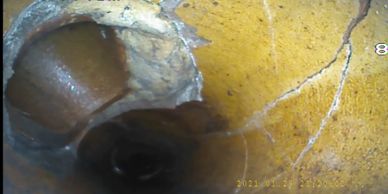

Fractures in Drain Pipes
Cracks in Clay or Pot Drains
Cracks in Clay or Pot Drains
Fractures are more serious than surface cracks, as they allow water to escape the pipe and saturate the surrounding ground, potentially leading to erosion or subsidence over time.
We offer no-dig repair solutions, including patch lining, to seal fractured sections without the need for excavation. This method restores the structural integrity of the pipe and prevents further damage efficiently and cost-effectively.
Open Joints & Displacements
Cracks in Clay or Pot Drains
Open Joints & Displacements
Open joints and joint displacements are common in older drainage systems and can vary in severity.
- Minor or moderate displacements often don’t require immediate repair unless there is clear evidence of leakage or the potential for blockages.
- Severe joint displacement or large open joints, especially those showing water loss or structural risk, will usually need remedial work such as patch lining or excavation.

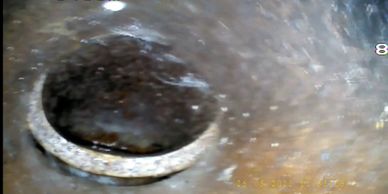

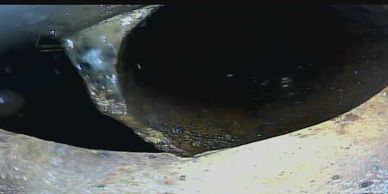

Holes in Drain Pipes
Breaks in Drain Pipes
Open Joints & Displacements
Holes in drainage pipes are a serious defect, especially when located on the invert (bottom) of the pipe. These openings allow water to escape directly into the surrounding ground, potentially leading to ground erosion, voids, or even subsidence.
Holes are also commonly exploited by rats and other vermin, using them as entry points for tunnelling and nesting, which can worsen structural damage.
In most cases, immediate repair is recommended, typically using patch lining or section replacement, depending on severity and location.
Breaks in Drain Pipes
Breaks in Drain Pipes
Breaks in Drain Pipes
A break occurs when a section of pipe becomes hinged or partially detached, but hasn’t yet completely separated. This kind of defect compromises the structural integrity of the drain and can lead to leaks, blockages, or eventual collapse.
Depending on the severity and location, remedial work is usually required. In many cases, a patch liner can be used to reinforce and seal the damaged area using our no-dig technology, avoiding the need for excavation.

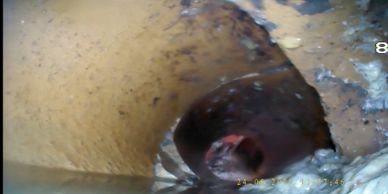

Collapsed Drain
Breaks in Drain Pipes
Breaks in Drain Pipes
When a drain has collapsed,
When a drain has collapsed, the pipe is no longer serviceable, and immediate action is required. Collapsed sections prevent the proper flow of waste and can result in sewage leakage, ground instability, and serious disruption.
In these cases, excavation is usually necessary to access and replace the damaged pipework. We recommend that repairs are carried out as soon as possible to prevent further damage and environmental contamination.
From Flooding to Functionality: Our Drainage Solutions in Action

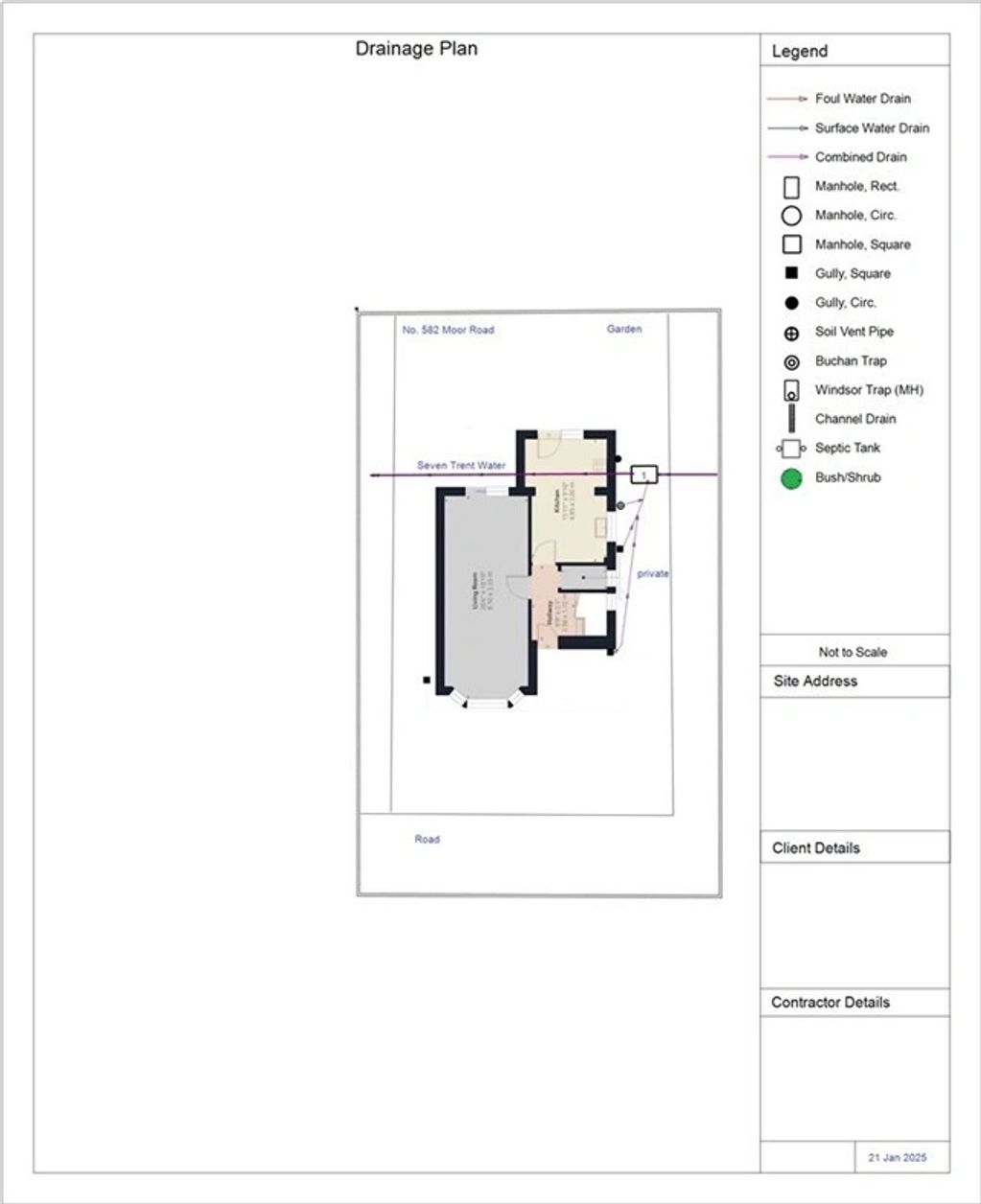

This detailed drainage plan was produced following a CCTV drain survey at a residential property. It clearly shows the location of foul and surface water drains, manholes, gully connections, and their relationship to both private and public sewer lines (including the Severn Trent Water connection). Our high-resolution reports help homeowners, builders, and property developers understand existing d

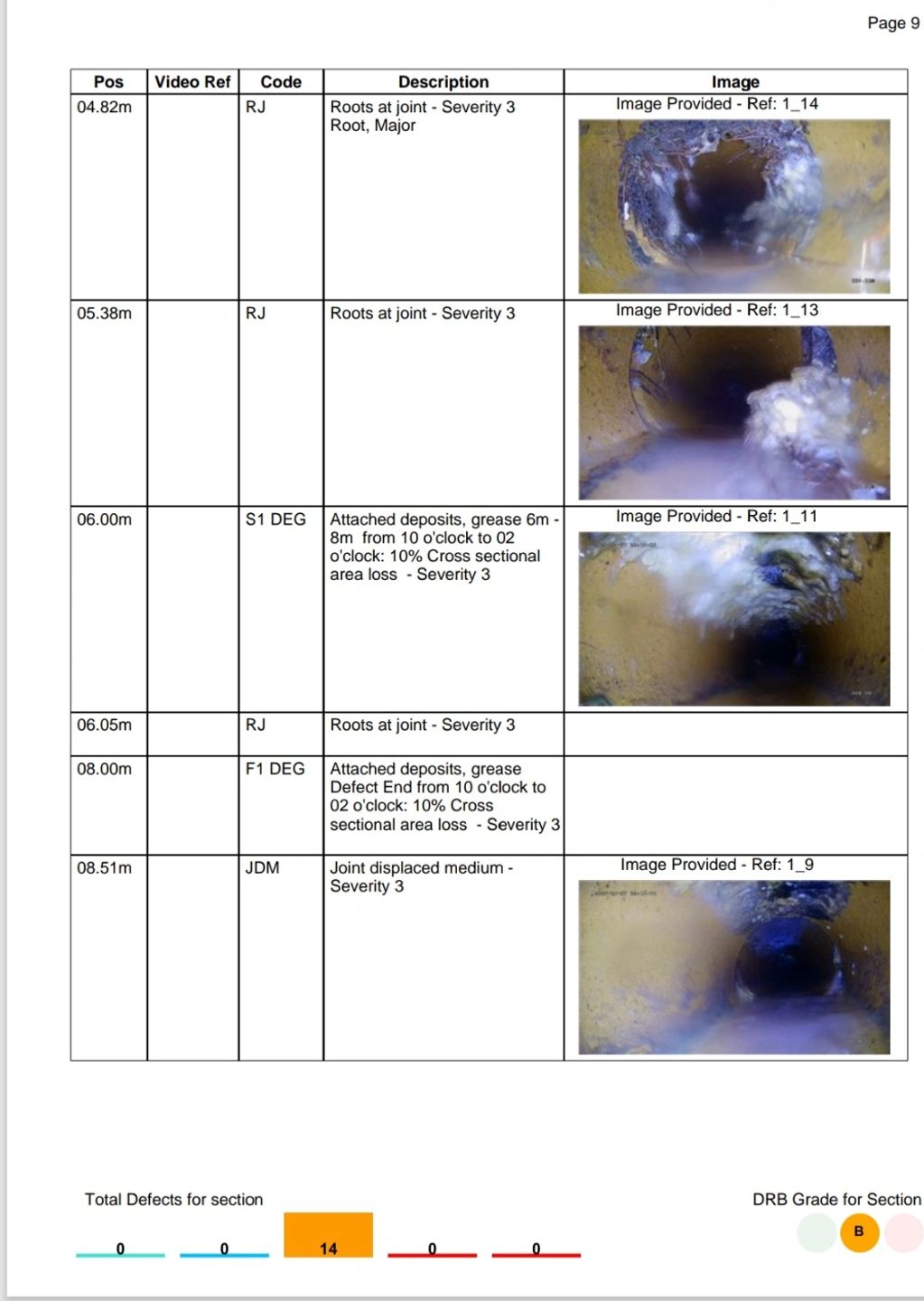

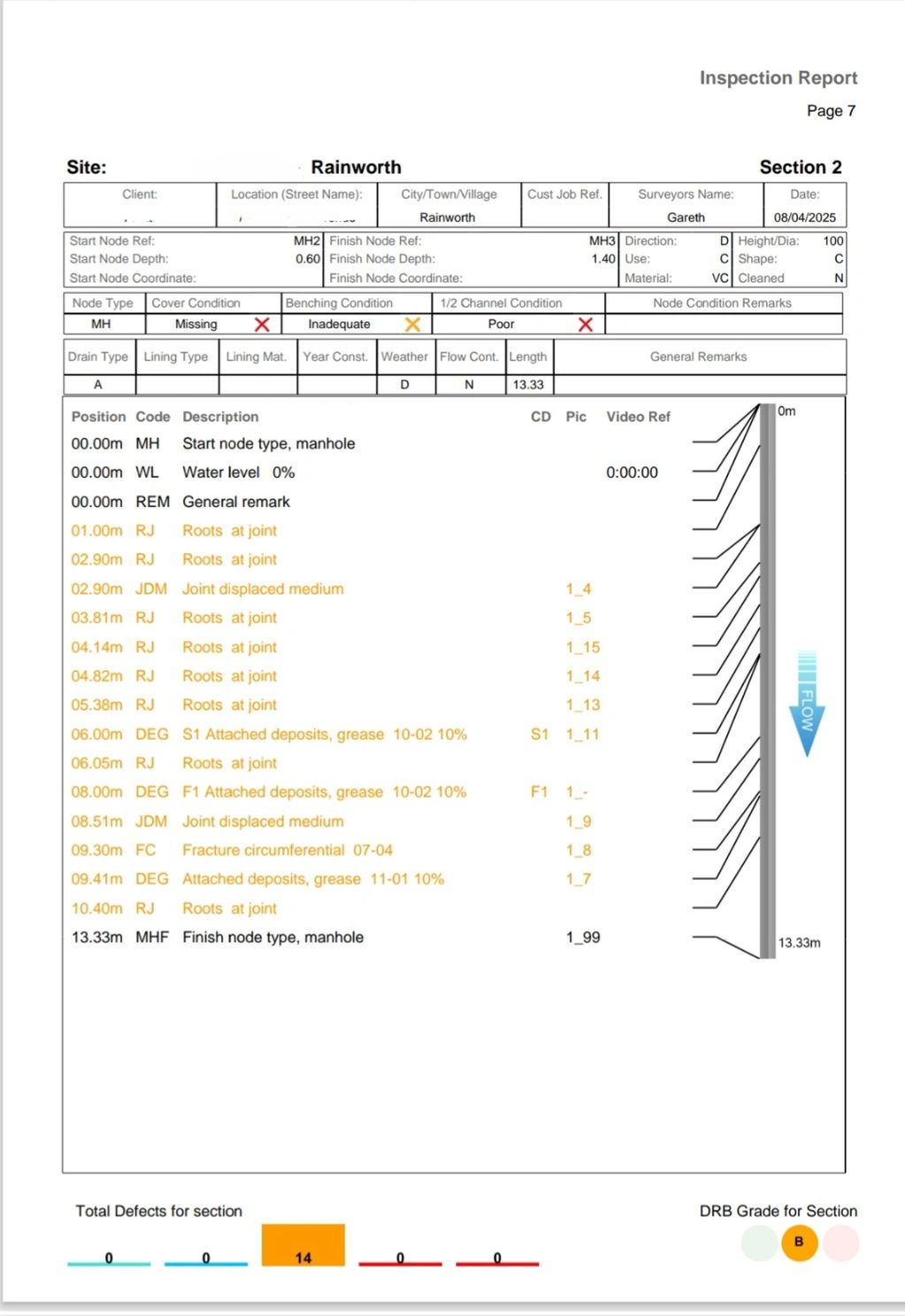

This section of a CCTV drain survey inspection report highlights key issues such as root ingress, displaced joints, and grease build-up. Each defect is coded to industry standards, making it suitable for insurance purposes, homebuyer reports, or submission to your local water authority for repair approval or build-over agreements.
Real CCTV footage from inside the drainage system, showing root intrusion, joint displacement, and grease build-up. These images support our coded survey findings and help demonstrate the extent of defects for insurance, repair planning, or property reports.
